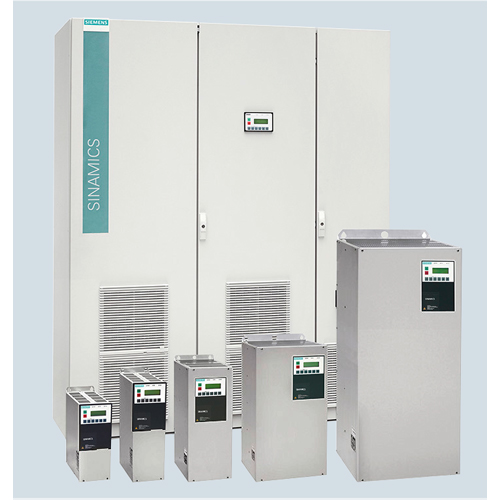

SINAMICS G180 cabinet systems
Products
SINAMICS G180 2x3A-87600-045 400-690V TN/TT, 50/60 Hz Motor output (typ.) 45kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, First environment C2
SINAMICS G180 2x3A-87500-030 230-500 V, IT, 50/60 Hz Motor output (typ.) 30kW (500V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87600-110 400-690V IT, 50/60 Hz Motor output (typ.) 110kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87600-160 400-690V TN/TT, 50/60 Hz Motor output (typ.) 160kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, First environment C2
SINAMICS G180 2x3A-87600-055 400-690V TN/TT, 50/60 Hz Motor output (typ.) 55kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, First environment C2
SINAMICS G180 2x3A-87400-005 230-500 V, TN/TT 50/60 Hz Motor output (typ.) 5.5kW (400V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN55011 Class A, First environment C2
SINAMICS G180 2x3A-87500-002 230-500 V, IT, 50/60 Hz Motor output (typ.) 2.2kW (500V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87600-007 400-690V IT, 50/60 Hz Motor output (typ.) 7.5kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87400-030 230-500 V, TN/TT 50/60 Hz Motor output (typ.) 30kW (400V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN55011 Class A, First environment C2
SINAMICS G180 2x3A-87600-022 400-690V IT, 50/60 Hz Motor output (typ.) 22kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87500-055 230-500 V, IT, 50/60 Hz Motor output (typ.) 55kW (500V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87600-075 400-690V TN/TT, 50/60 Hz Motor output (typ.) 75kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, First environment C2
SINAMICS G180 2x3A-87600-132 400-690V TN/TT, 50/60 Hz Motor output (typ.) 132kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, First environment C2
SINAMICS G180 2x3A-87600-200 400-690V TN/TT, 50/60 Hz Motor output (typ.) 200kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, First environment C2
SINAMICS G180 2x3A-87400-003 230-500 V, TN/TT 50/60 Hz Motor output (typ.) 3kW (400V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, First environment C2
SINAMICS G180 2x3A-87600-132 400-690V IT, 50/60 Hz Motor output (typ.) 132kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87500-015 230-500 V, IT, 50/60 Hz Motor output (typ.) 15kW (500V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87500-160 230-500 V, IT, 50/60 Hz Motor output (typ.) 160kW (500V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87500-011 230-500 V, IT, 50/60 Hz Motor output (typ.) 11kW (500V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2x3A-87600-090 400-690V TN/TT, 50/60 Hz Motor output (typ.) 90kW (690V) one inverter in the cabinet HWD= 2000*606*605 mm (without opt.), IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN55011 Class A, First environment C2
